Solar BAR

The Solar BAR is the only recorder designed for ultra-endurance continuous monitoring in remote and hard to access places.

Featuring a 10W solar panel with a built-in charge controller and no external cables or connectors, the Solar BAR is capable of recording continuously (or scheduled) for years with only minimal service visits to change memory cards.

A practical choice for researchers who need to record a whole season of data in sub zero temperatures or in a harsh desert where human access is only feasible at certain times of the year.

• 1 x microphone included with Solar BAR.

• Choose from low frequency or standard frequency microphone

• Solar BAR Device

• Adonised aluminium base plate and 4 x screws (attached)

• Adonised aluminium post connector

• 2 x bolts and washers

• 1 x wingnut bolt and washer

• 5 x reusable dessicant sachets

• 7.2 Ah lead acid battery

• 1 x microphone (choose between standard and low frequency)

Dimensions

Without base plate attached:

• 30.5cm wide  x  25cm across x 11 cm high

• Weight: 4kg (including battery)

Case and Mounting

• Rugged, waterproof, lockable case made from tough UV resistant plastic.

• The Solar BAR can be mounted at an adjustable angle to maximise solar exposure

• Space for silica desiccant sachets to ensure any condensation is absorbed before it can affect the device.

Recording Capabilities

- 4 x SD card slots for cards up to 1TB each.

• Supports 16-bit WAV and FLAC (lossless compression) recording at sample rates from 8kHz to 96kHz

• Adjustable gain up to 60dB

• Supports multiple sample rates: 8kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz, 96kHz (with corresponding anti-aliasing filters).

• Able to continuously record until all SD cards are full due to continous power provided by solar panel.

GPS and Scheduling Features

• Built-in GPS automatically time-syncs and GEO-stamps your recordings.

• Comes with scheduler software to program complex sampling schedules if required, including sunrise/sunset based recordings, different recordings on different days and waking up at a future date.

​

Microphones

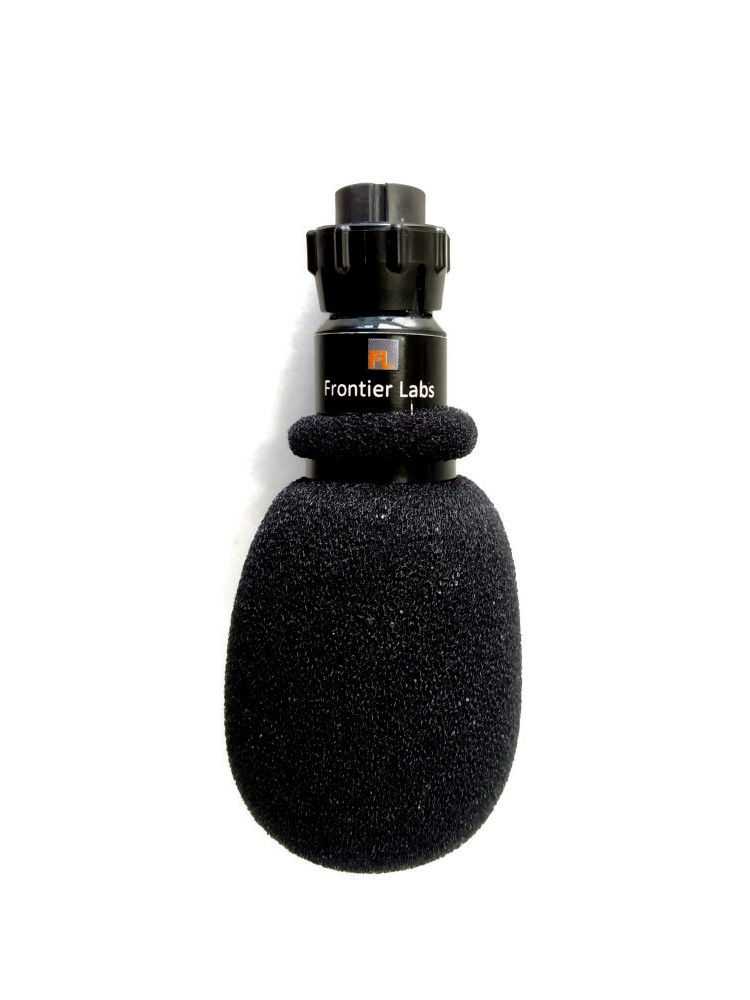

• Highly sensitive, low noise omnidirectional microphone with a 20dB class A pre-amp and cable driver.

• Internal microphone memory chip tracks microphone age over time

Solar Panel & Battery

• Built in 10W mono-crystalin solar panel

• Built in solar controller and battery charger

• Lasts approximately 1,000 hrs with no sun (running from 12V 7.2Ah battery)
